Galaxy shaped rotor system.

 A rotor technology with galaxy shaped structure. It has twelve weights each on big roller mounted on roller bearings. Those masses are guided by arms coming out from the center of the device. The weights are equipped in special caring system created by using three roller bearings on each side of the weight - one system on the top and the second on the bottom. This system is based on centrifugal force creating and inertial phenomena based on those forces. The system is rotating in one direction around the center of rotation where is central shaft connected to electric motor so the system can gain a proper rotational potential to creating the inertial force. The weights have proper to that aim shapes, which is relaying on obtaining the most power from inertial momentum of those weights as they have more potential on its longer axis. System should be as much dense as possible, for that aim one can applicate 14 weights as well, not only 12 weights, and displace the center of rotation maximally to the bottom of the device.


Upper view.

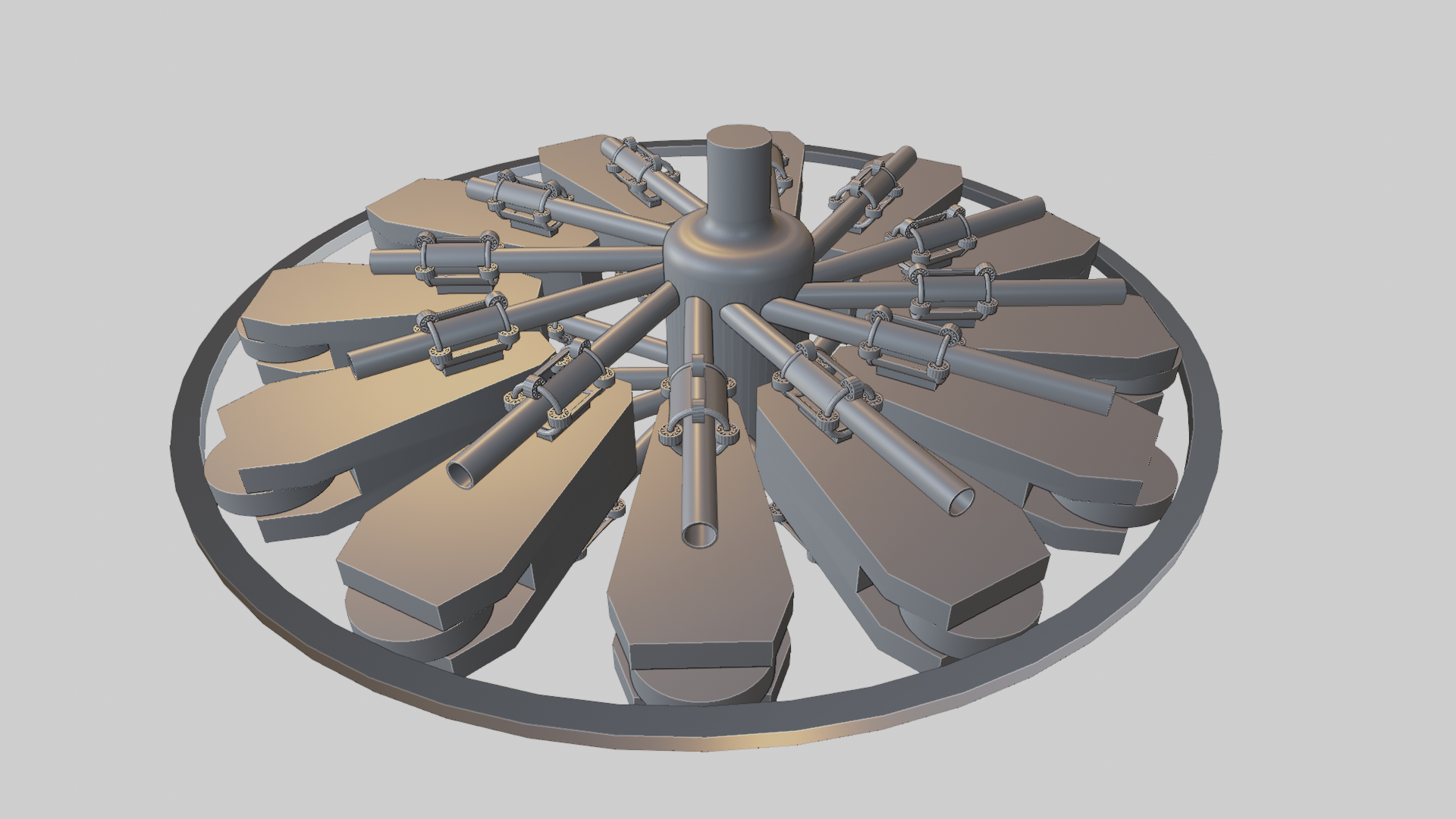

Perspective.


Side view.
